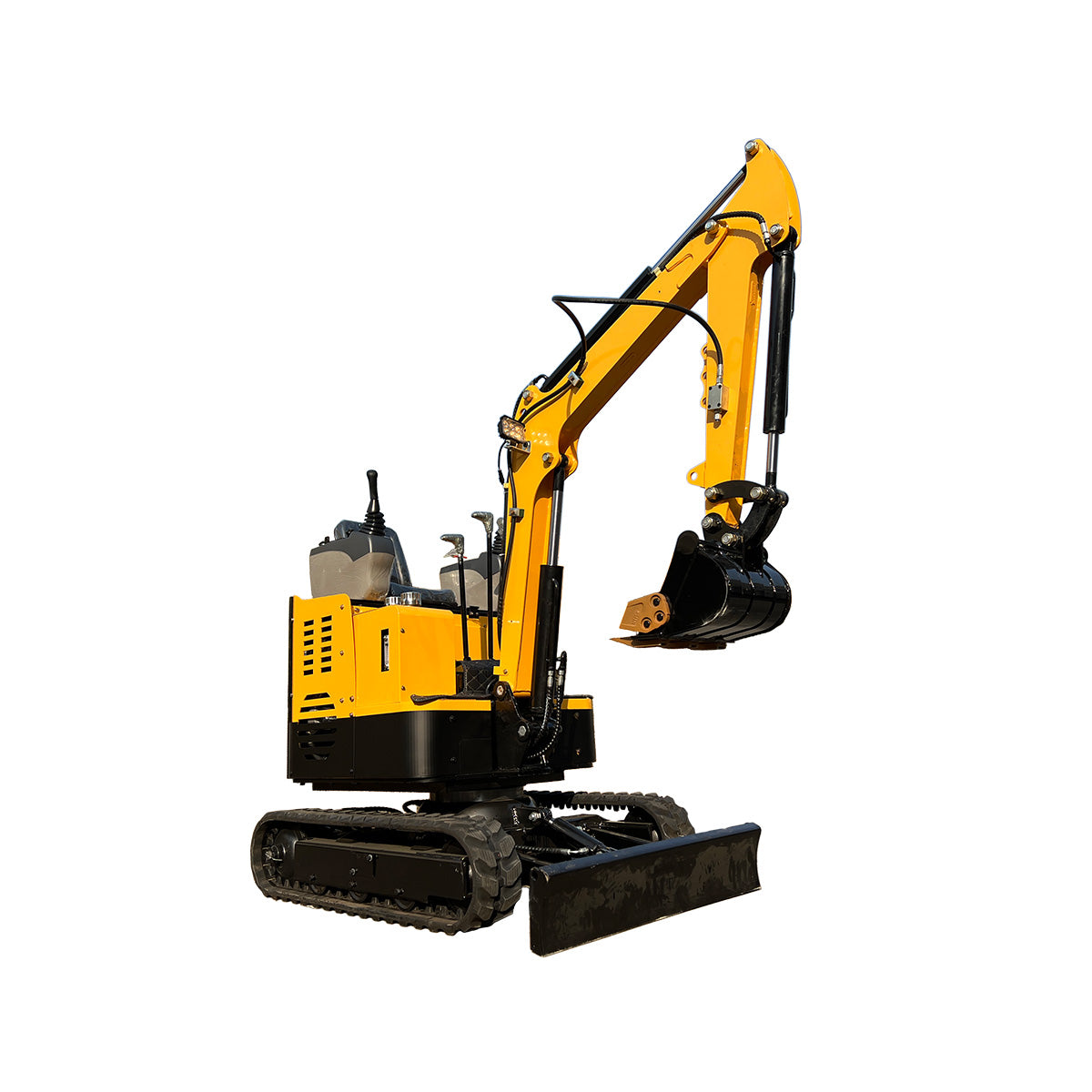

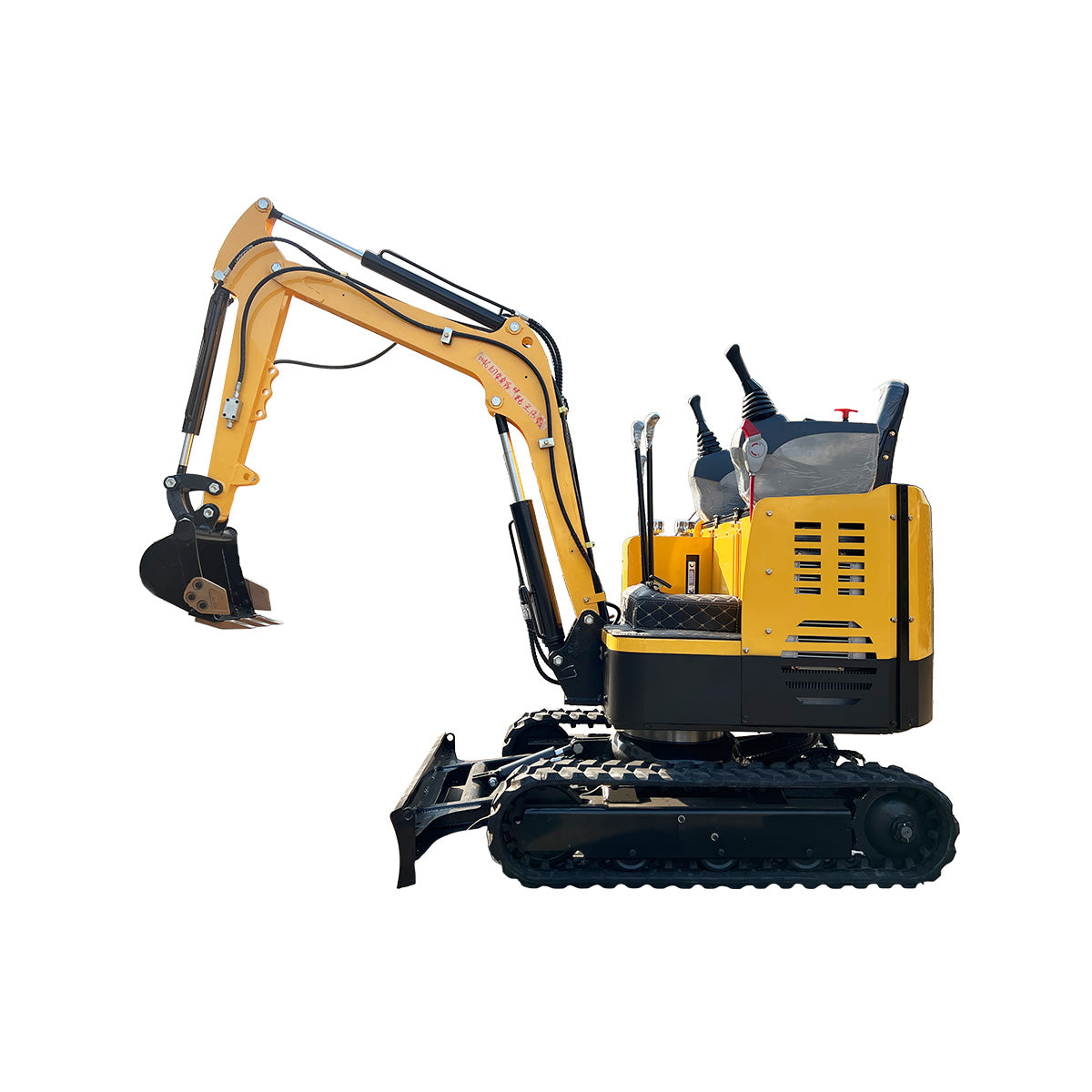

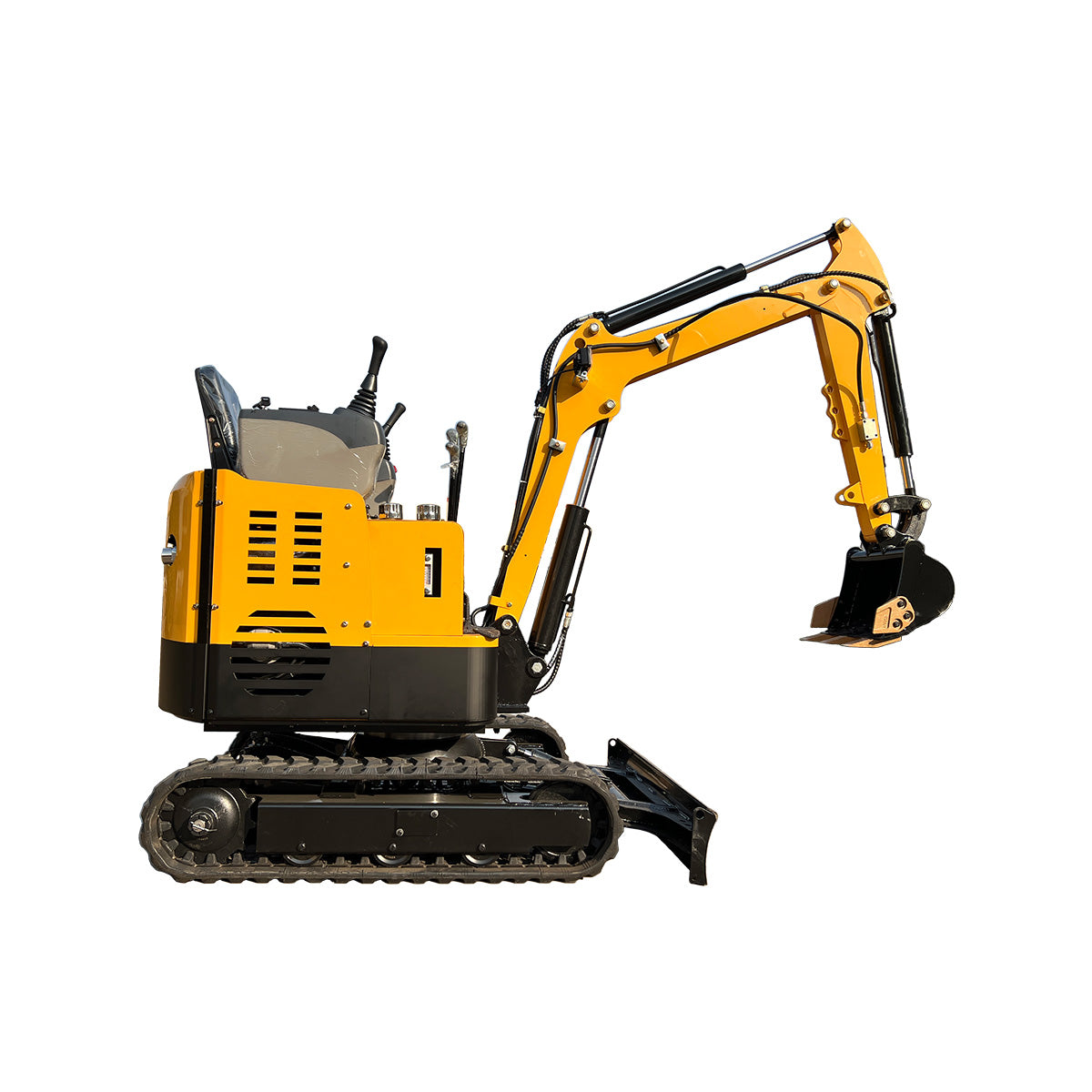

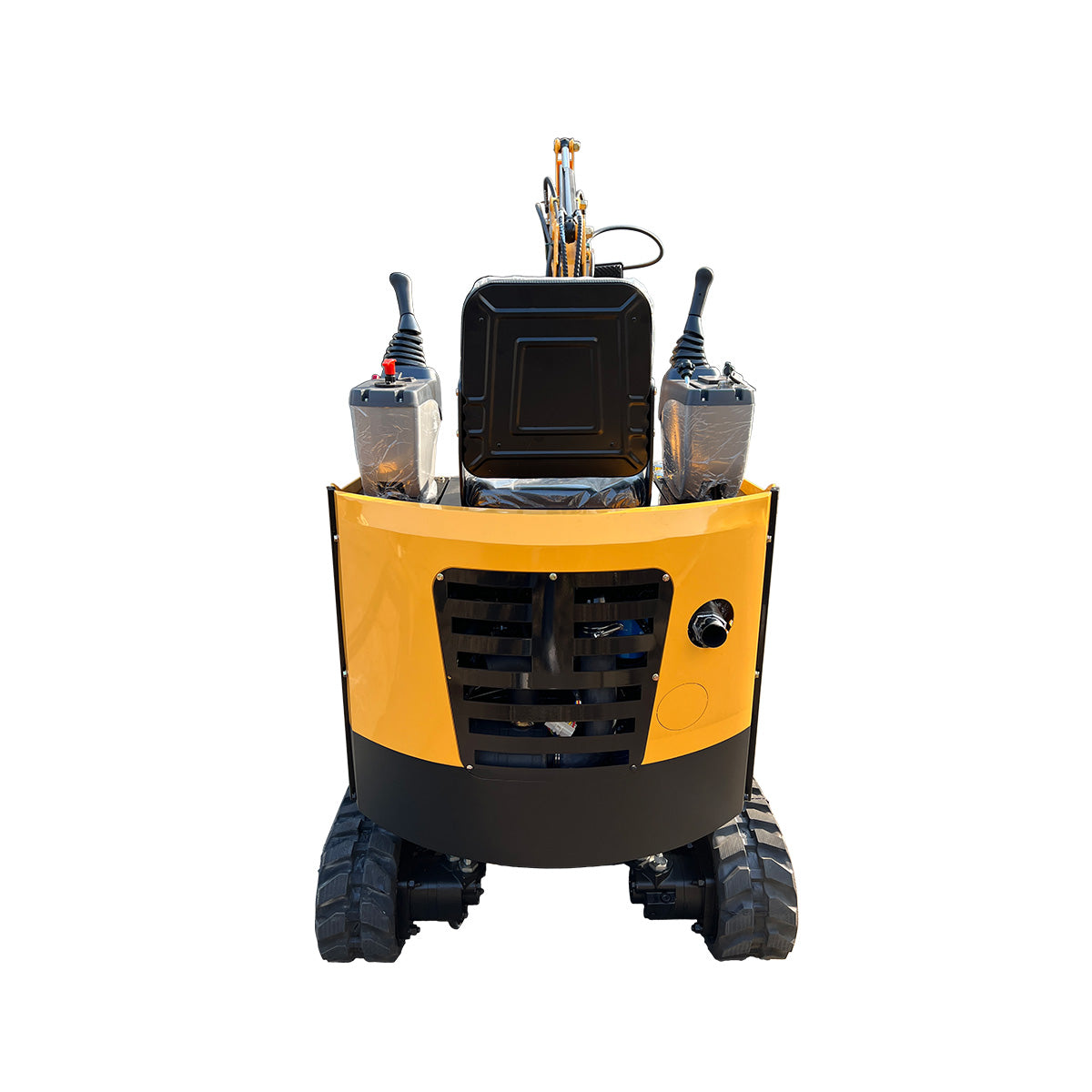

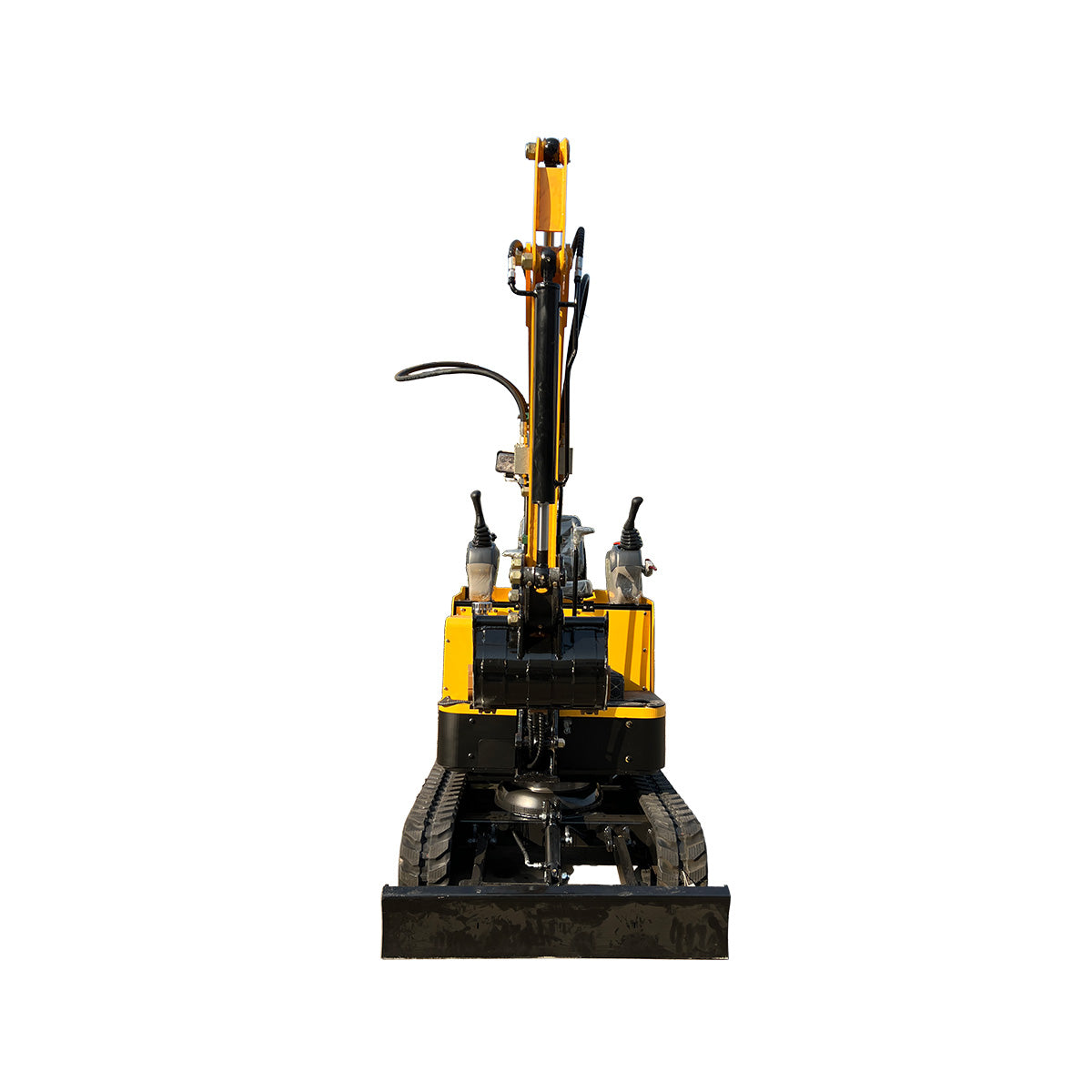

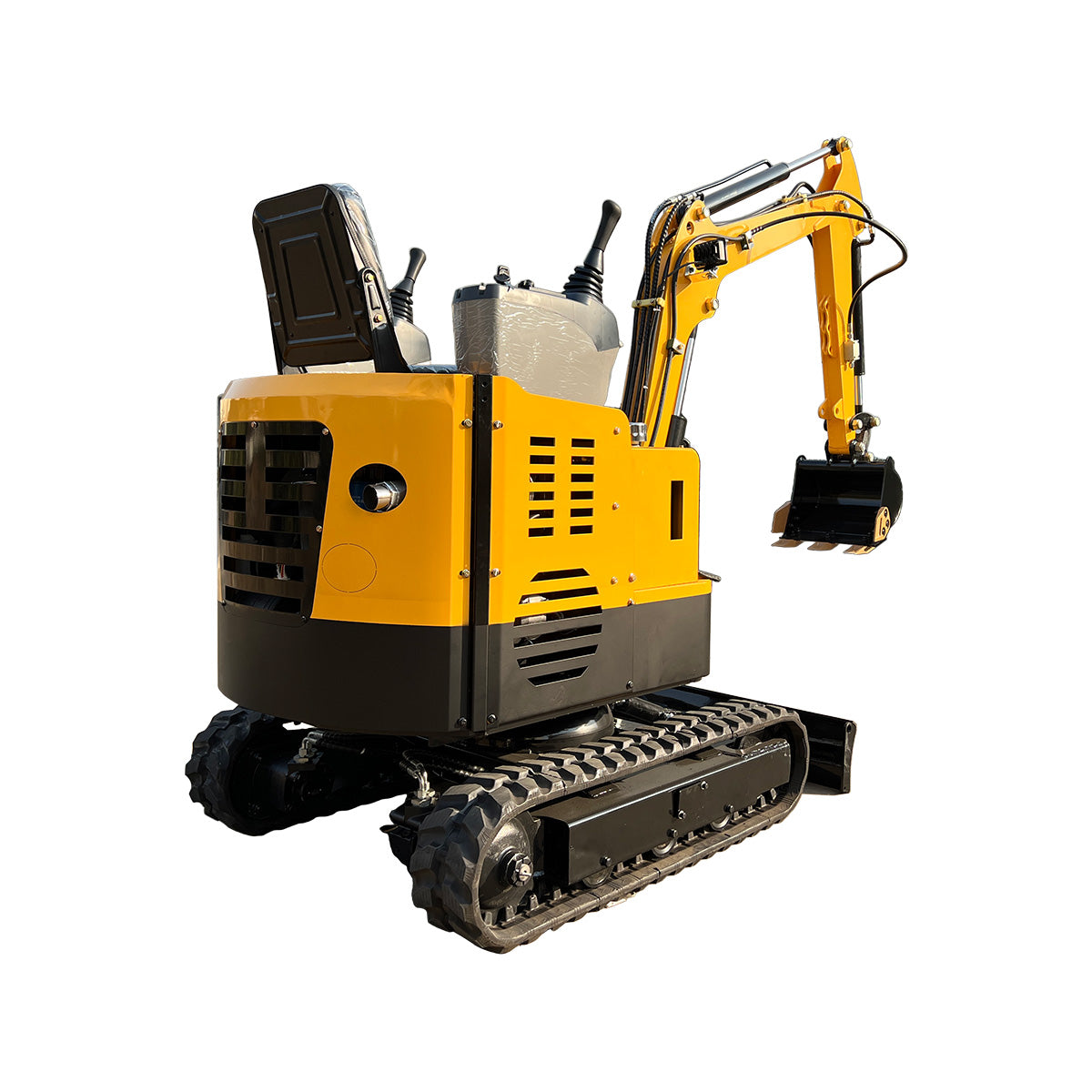

1.48 Ton KV17-B Mini Excavator
1-12 months
Gute Verpackung
Sichere Zahlung
Normaler Preis
$9,999,999.00 USD
Konnte die Verfügbarkeit der Abholung nicht laden.
DESCRIPTION
| Specification | Dimensions (mm) | ||
|---|---|---|---|
| Engine Model |
Changchai 390
|
Overall length |
2400
|
| Type |
3-cylinder, 4-stroke direct injection
|
Ground length (transportation) |
2170
|
| Displacement (L) |
1.36
|
Overall width
|
1000/1200
|
| Rated Power (kw/rpm) | 15.5/2400 |
Counterweight ground clearance
|
1030
|
|
Engine power (KW)
|
20
|
Minimum ground clearance
|
385
|
| Rated working flow (L/min) |
36
|
Tail swing radius
|
1550
|
| Arm digging force(kN) |
9–11
|
Wheelbase
|
1250
|
| Bucket digging force(kN) |
13–16
|
Standard track shoe width
|
150
|
| Travel speed (km/h) |
1.5
|
Whole Size
|
2400*1100*2200
|
| Traction force (kN) |
12
|
RS Boom right swing
|
60°
|
|
Max. rotation speed (r/min)
|
10
|
LS Boom left swing
|
60°
|
|
Brake type
|
Hydraulic Brake
|
Max. digging height
|
2400
|
|
Machine weight (kg)
|
1350
|
Max. dumping height
|
1850
|
|
Bucket capacity (㎥)
|
0.03
|
Max. digging depth
|
2000
|
|
Fuel tank capacity (L)
|
10 |
Max. digging radius on ground
|
2900 |
|
Cooling system (L)
|
3.5 |
Min. swing radius of working device
|
1550 |
|
Engine oil volume (L)
|
5 |
Hydraulic pump
|
Piston Pump
|
|
Operating pressure(Mpa)
|
16 |
Hydraulic oil tank capacity (L)
|
12 |
SHOW MORE
