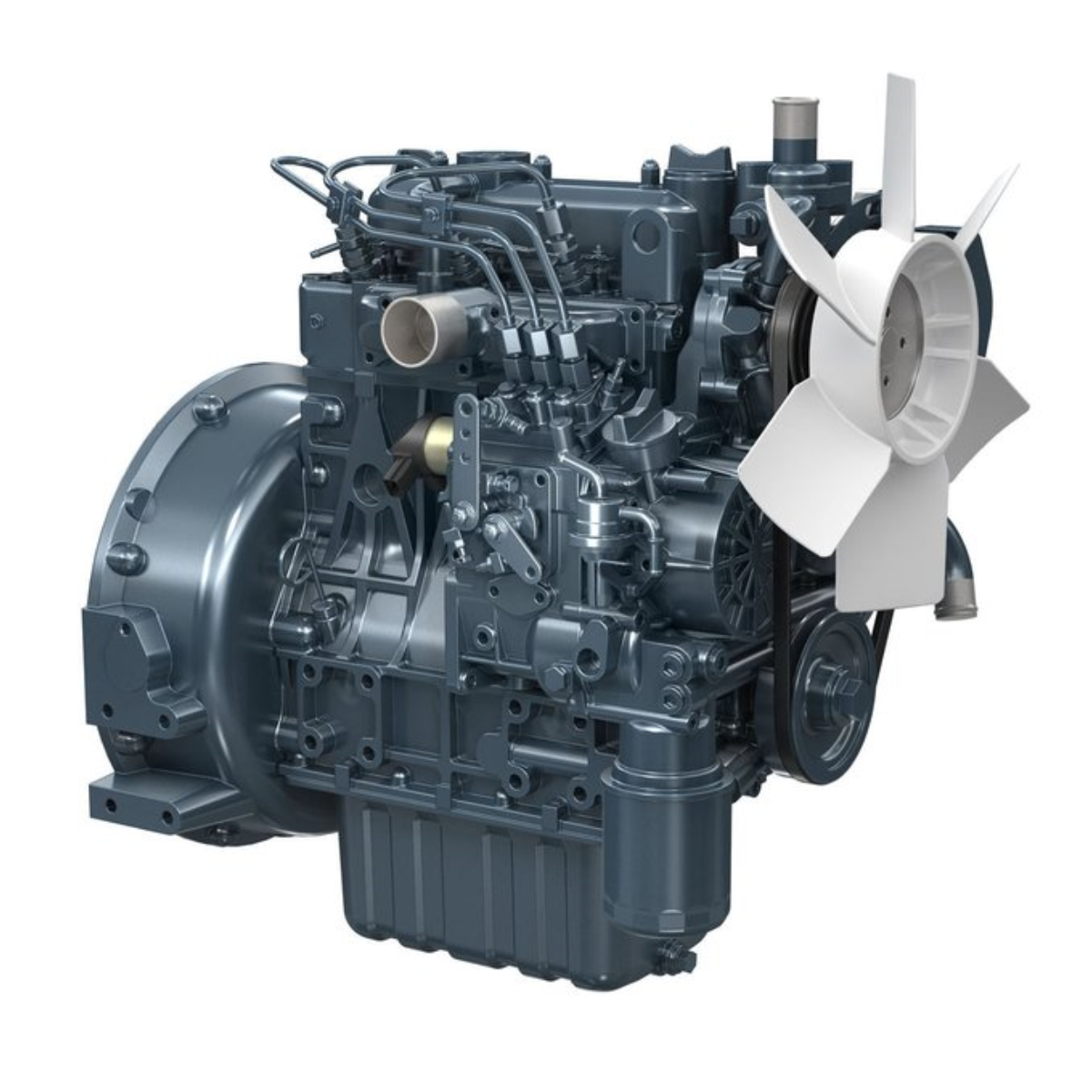

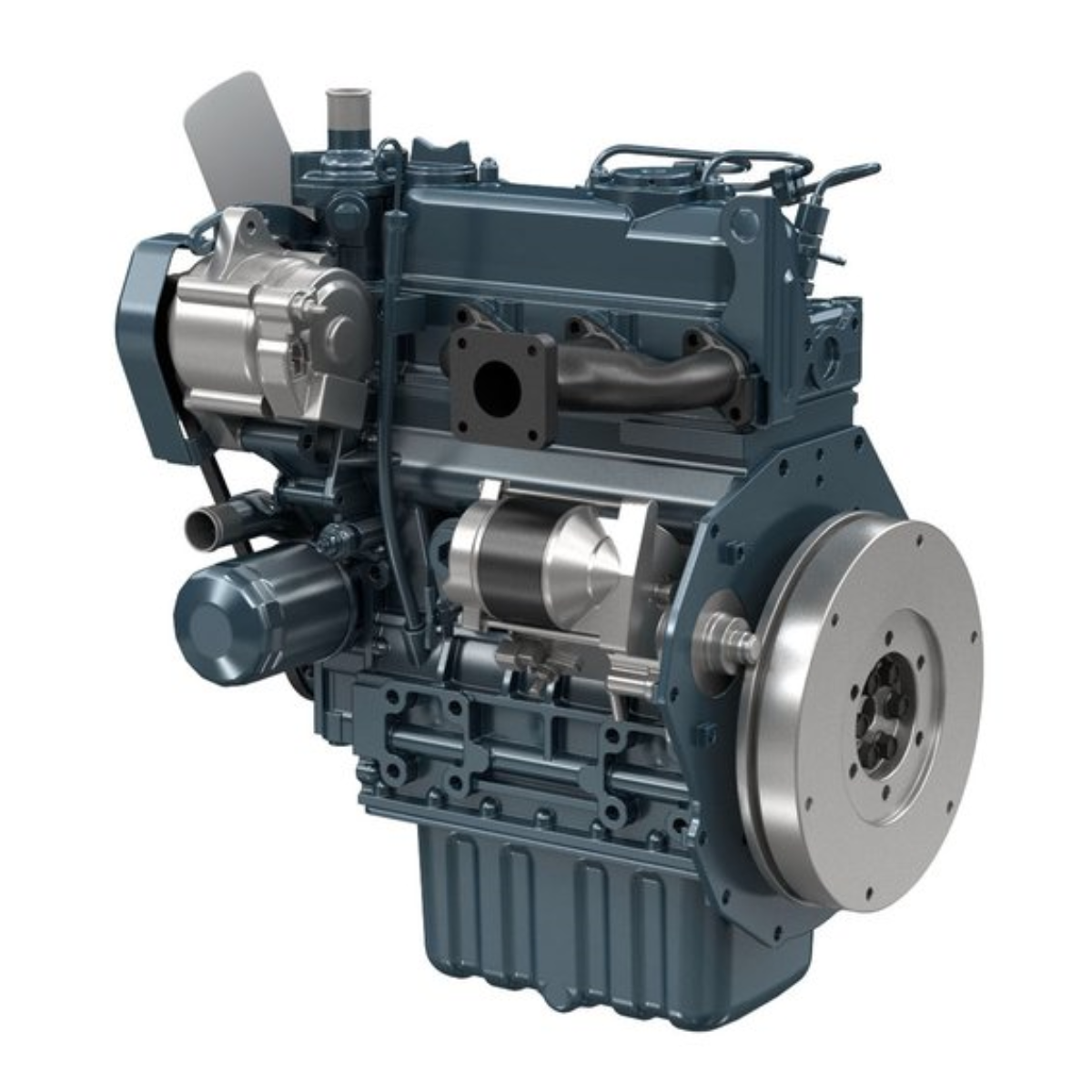

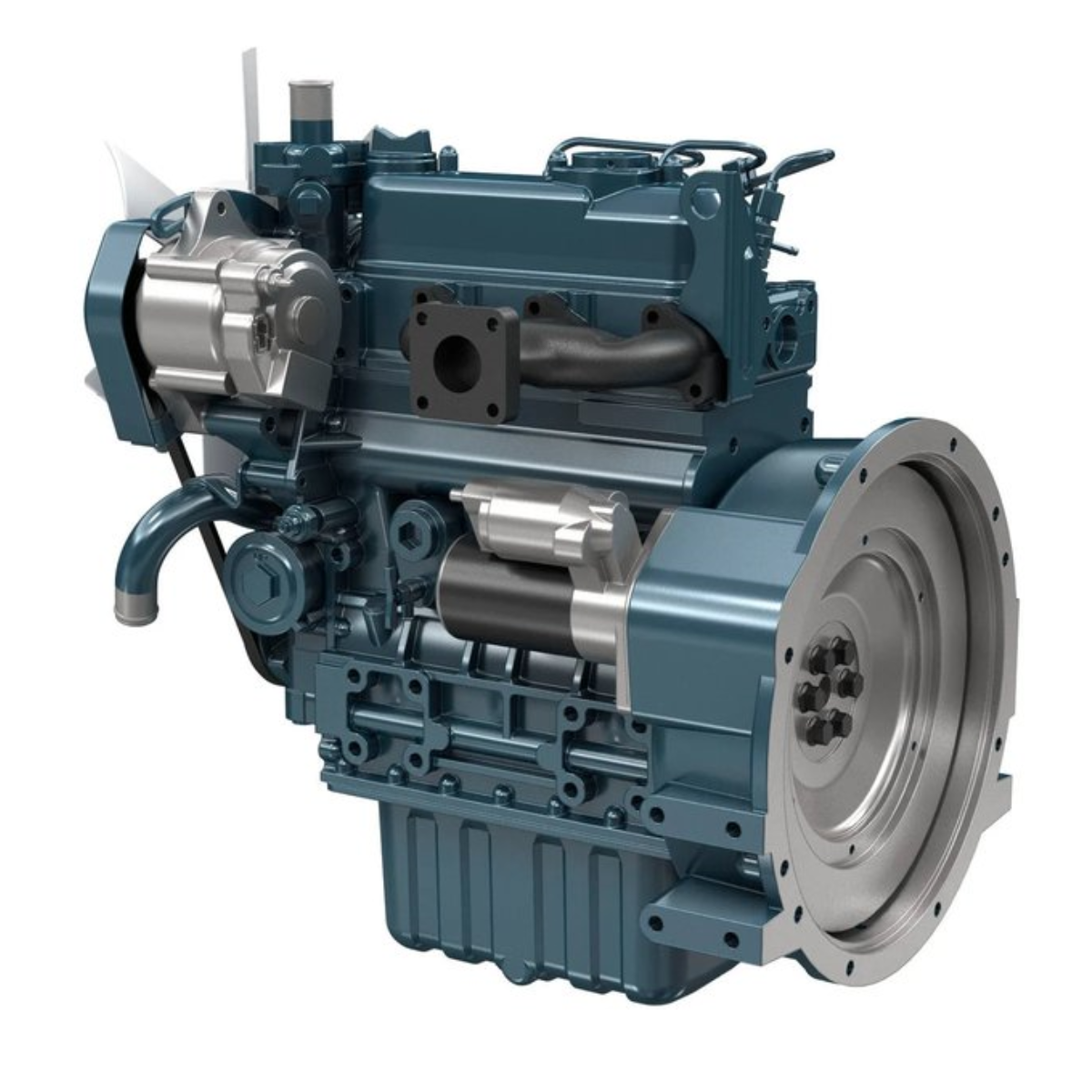

2017-2024 D1105-E4B Engine Assembly for Kubota
Good Packaging
Safe Payment
Regular price
$9,999,999.00 USD
Couldn't load pickup availability
DESCRIPTION
| Part Name | Engine | Part Number | D1105-E4B |
| Application | Kubota | Condition | Genuine |
| Product Weight | 93KG/205 pounds (1 piece) | Warranty | Communication Confirmed |
| Country of Origin | China | Brand | SINOCMP |
| Package | Neutral packing | Payment Method | Credit Card, PayPal, T/T, Western Union, etc |
| Lead Time | 6-8 working days | Delivery Time |
5-12 days by air 35-45 days by sea |
| Notes | We will give you a reply within 12 hours. |
Main Specifications
| Specification/Performance Parameter | Description/Value |
|---|---|
| ENGINE MODEL | D1105-E4B |
| EMISSION REGULATION | EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V |
| TYPE | Vertical, water-cooled 4-cycle diesel engine |
| CYLINDERS | (Not explicitly listed, but implied as single or unspecified multiple) |
| BORE AND STROKE | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| DISPLACEMENT | 1.123 L (68.53 cu. in) |
| ASPIRATION | Naturally aspirated |
| AFTER TREATMENT | (Type not explicitly listed) |
| RATED OUTPUT / SPEED | 18.5 kW (24.8 HP) / 3000 rpm |
| MAXIMUM TORQUE / SPEED | 71.5 Nm (52.7 lb-ft) / 2200 rpm |
| COMBUSTION SYSTEM | Indirect injection |
| FUEL SYSTEM | In-line pump |
| LENGTH X WIDTH X HEIGHT*2 (without after treatment) | 480 x 396 x 605 mm (18.9 x 15.6 x 23.8 in) |
| LENGTH X WIDTH X HEIGHT*3 (with after treatment) | (Not explicitly listed) |
| DRY WEIGHT | 93 kg (205 lb) |
SHOW MORE
